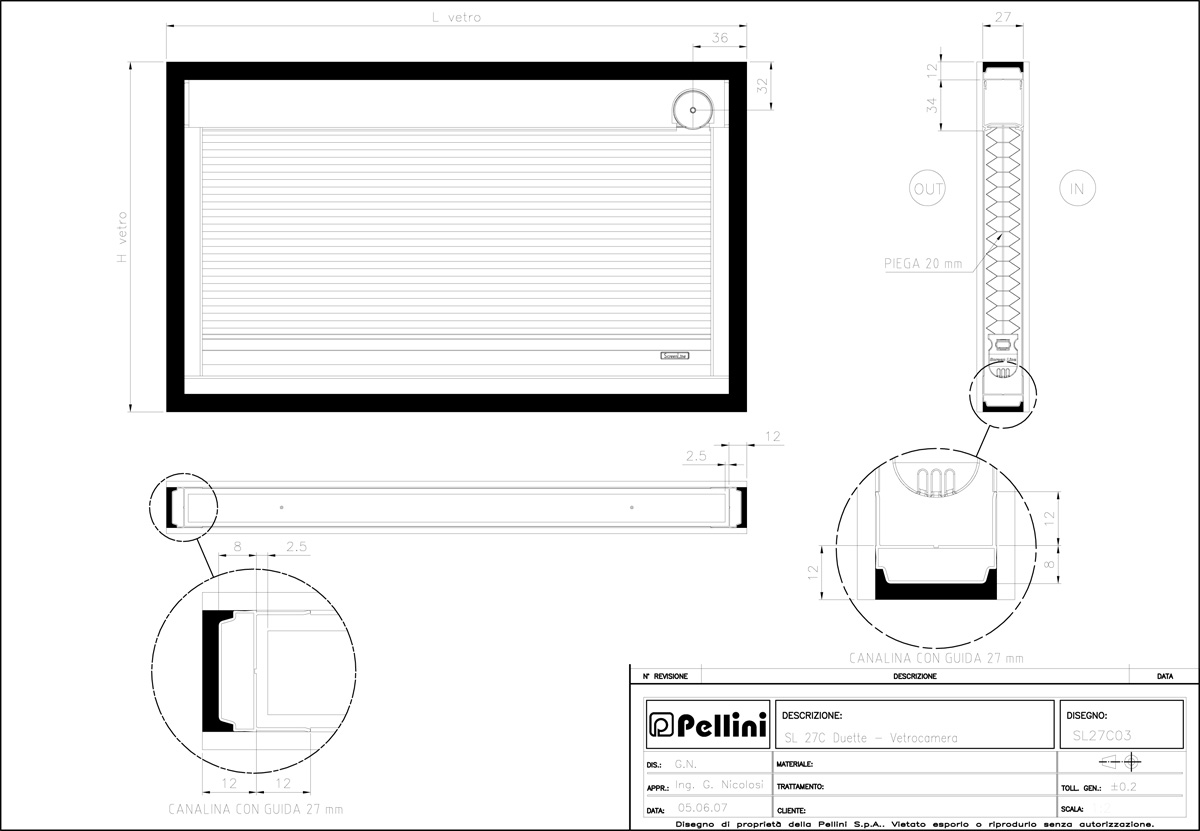

ScreenLine® SL27-32C is a patented magnetic system with manual operation (raising function) for pleated blinds incorporated within 27-mm or 32-mm double glazing units and featuring Verosol® fabrics, which are coated with an aluminium layer on one side.

Double-guided spacer bars are suitably coated in order to avoid reflected light, ensuring complete darkening.

The external magnetic device applied on the glass by means of high-resistance adhesive tape contains a cord loop and a magnet that is perfectly interfaced with the magnetic joint of the internal drive, which is completely housed inside the head rail. The movement provided to the cord enables the rotation of the magnets that activate the blind.
The cord is kept under tension by means of a special cord tensioner applied on the glass.
SL27-32C is suited to areas that require complete darkening.

SL27-32C ensures with time the insulating properties of the double glazing unit, notably protection from dirt or weather conditions. The integrated unit can be fitted into the window frame like standard insulating glass.

Products Code Description
SL1890
SLIM magnetic device adhesive

SL1897
SLIM cord tensioner adhesive

SL2188
M system power supplier for DIN bar

SL1011
Cord loop (7 colours)

SL1807
M control unit

SL1963
M control unit with integrated radio receiver

SL1898
SLIM external magnetic device (7 colours)

SL2187S102
Package consiting of two couples one pole for magnetic contacts White

SL2187
Package consiting of two couples one pole for magnetic contacts Grey

SL2187B160
Package consiting of two couples one pole for magnetic contacts Black

SL2190S155
External Motor Grey

SL2190S102
External Motor White

SL2190B160
External Motor Black

SL1965S102
99-channel radio remote control White

SL1965
99-channel radio remote control Grey

SL1965B160
99-channel radio remote control Black

SL1899
SLIM cord tensioner (7 colours)
