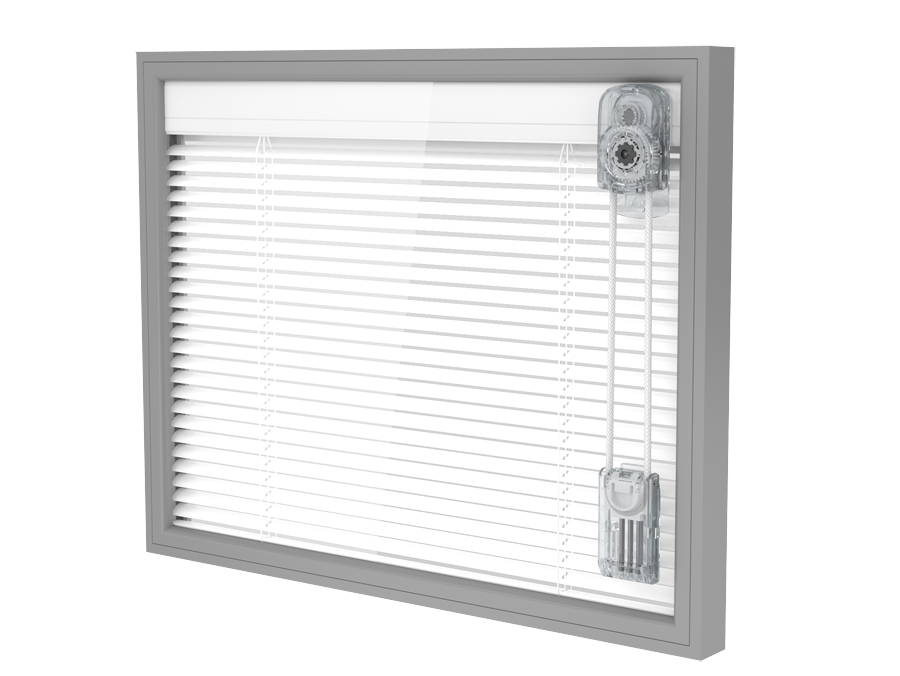

ScreenLine® SL20-22C is a patented magnetic system with manual operation (raising and tilting function) for venetian blinds incorporated within 20-mm or 22-mm double glazing units.

The external magnetic device applied on the glass by means of high-resistance adhesive tape contains a cord loop and a magnet that is perfectly interfaced with the magnetic joint of the internal drive, which is completely housed inside the head rail. The movement provided to the cord enables the rotation of the magnets that activate the blind.
The cord is kept under tension by means of a special cord tensioner applied on the glass.

SL20-22C is particularly suited to structural façades, although there are actually no limits to its application.

It ensures with time the insulating properties of the double glazing unit, notably protection from dirt or weather conditions. The integrated unit can be fitted into the window frame like standard insulating glass.

Products Code Description
SL19171000
Aluminium removable wand H = 1000

SL19173000
Aluminium removable wand H = 3000

SL1890
SLIM magnetic device adhesive

SL1897
SLIM cord tensioner adhesive

SL2188
M system power supplier for DIN bar

SL1011
Cord loop (7 colours)

SL1033
Transparent control wand

SL19171500
Aluminium removable wand H = 1500

SL19172000
Aluminium removable wand H = 2000

SL19172500
Aluminium removable wand H = 2500

SL19170500
Aluminium removable wand H = 500

SL1807
M control unit

SL1963
M control unit with integrated radio receiver

SL1032
External magnetic wand device (colour: transparent, white, black)

SL1898
SLIM external magnetic device (7 colours)

SL2187
Package consiting of two couples one pole for magnetic contacts Grey

SL2187S102
Package consiting of two couples one pole for magnetic contacts White

SL2187B160
Package consiting of two couples one pole for magnetic contacts Black

SL2190S155
External Motor Grey

SL2190S102
External Motor White

SL2190B160
External Motor Black

SL1965
99-channel radio remote control Grey

SL1965S102
99-channel radio remote control White

SL1965B160
99-channel radio remote control Black

SL1899
SLIM cord tensioner (7 colours)

SL1017
Magnetic wand device adhesive Transparent

SL1017S160
Magnetic wand device adhesive Black
